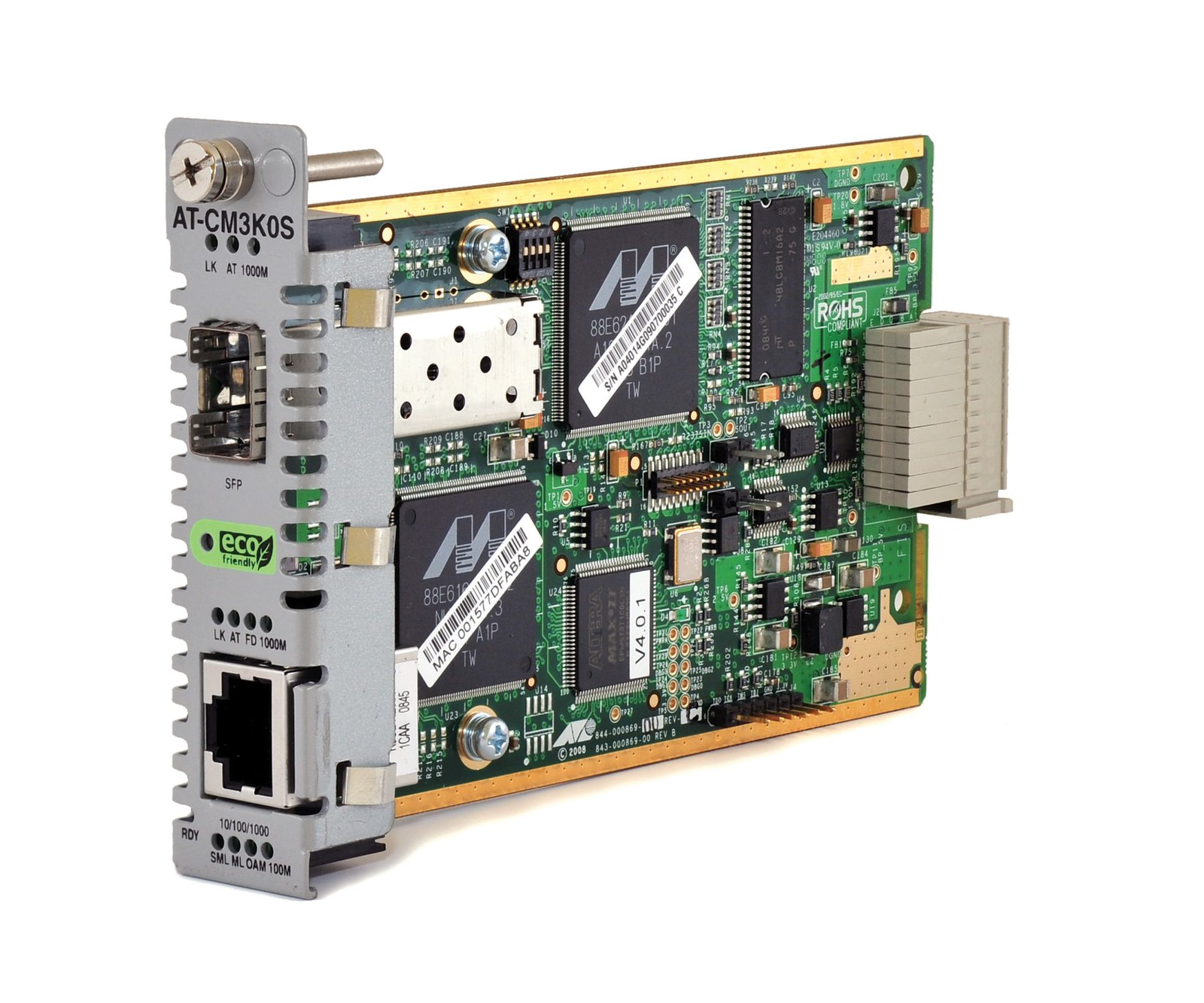

Allied Telesis AT-CM3K0S network media converter 1000 Mbit/s

This media and rate converter line card features a 10/100/1000T twisted pair port and an optical SFP port. The twisted pair has an RJ-45 connector and a maximum operating distance of 100 meters (328 feet) when connected to an Ethernet or Fast Ethernet or Gigabit Ethernet device. They operate in full or half-duplex mode, and allow you to build an affordable network, avoiding the cost of terminatiang fiber cables. The AT-CM3K0S has a SFP port supporting both Fast Ethernet and Gigabit operation, allowing a choice of multi/single mode, dual/single fiber SFP modules.

- Converts speed as well as media type
- Extends Ethernet and Fast Ethernet and Gigabit Ethernet networks
- Supports IEEE 802.3ah ‘Ethernet in the First Mile’
- Support MissingLink™ and Smart MissingLink™
- Transparent to IEEE 802.1Q VLAN packets
- Jumbo Frame Support
- Rate Limiting
- Low Power Mode
- Supports Dying Gasp
- Automatic address learning and aging
- Managed, or Unmanaged operation
- Auto MDI/MDI-X
- Auto-Negotiation (IEEE 802.3u-compliant)
- Store and forward data packet handling
- Supports 100 and 1000Mbps SFPs
- System and port LEDs
- Line card for all Converteon™ series chassis
- Limited lifetime warranty
