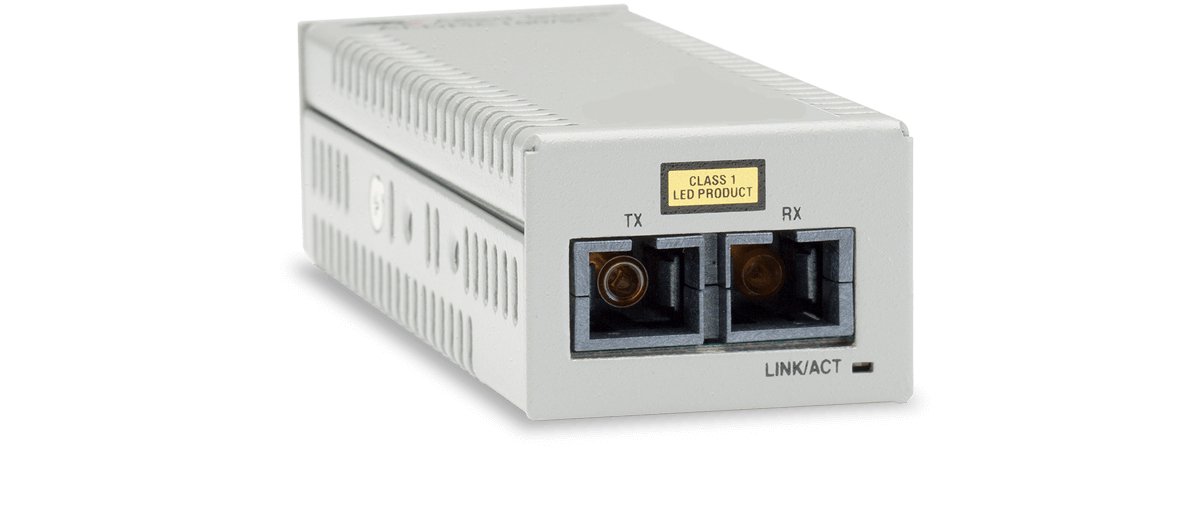

Name: Allied Telesis AT-DMC100/LC-90 network media converter 100 Mbit/s 1310 nm Multi-mode Grey
Brand: Allied Telesis
SKU: AT-DMC100/LC-90
Price: 220.40 USD
Availability: InStock

Home /Networking & Communications /Allied Telesis AT-DMC100/LC-90 network media converter 100 Mbit/s 1310 nm Multi-mode Grey

Product Details

Overview

At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, Allied Telesis DMC Series media converters can easily fit into the palm of a hand. In addition to being compact—with a small carbon footprint—the DMC Series can also be powered with the included Micro USB to USB cable, and plugged directly into a laptop or PC or may also be powered via the optional AC/DC adapter. This saves installation time and cabling as there are no further power requirements

Product Specifications

Manufacturer	Allied Telesis
Manufacturer Part Number	AT-DMC100/LC-90
GTIN / Barcode	0767035209937
Brand Name	Allied Telesis
Product Name	Allied Telesis AT-DMC100/LC-90 network media converter 100 Mbit/s 1310 nm Multi-mode Grey

Network
Mfr. Part Number	AT-DMC100/LC-90
GTIN / Barcode	0767035209937
Maximum data transfer rate	100 Mbit/s
Converter input interface	100Base-TX
Converter output interface	100Base-FX
Networking standards	IEEE 802.1Q
Fiber ethernet cabling technology	100BASE-FX
Data transfer rate	100 Mbit/s
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Duplex system	Full, Half
Link Loss Carry Forward (LLCF) supported	Yes
Link Loss Return (LLR) supported	Yes
Performance
Maximum transfer distance	2000 m
Wavelength	1310 nm
Fiber mode structure	Multi-mode
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Tx power (min)	-22.5 dBmW
Tx power (max)	-14 dBmW
Rx power (min)	-32 dBmW
Rx power (max)	-14 dBmW
Features
Internal	No
LED indicators	Yes
Product colour	Grey
DIN rail mounting	Yes
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	LC
Weight & dimensions
Width	31.8 mm
Depth	91.4 mm
Height	21.6 mm
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m
Certificates
Compliance certificates	RoHS
