Name: Allied Telesis AT-DMC100/SC-90 network media converter 100 Mbit/s 1310 nm Multi-mode Grey
Brand: Allied Telesis
SKU: AT-DMC100/SC-90
Price: 220.40 USD
Availability: InStock

Home /Networking & Communications /Allied Telesis AT-DMC100/SC-90 network media converter 100 Mbit/s 1310 nm Multi-mode Grey

Product Details

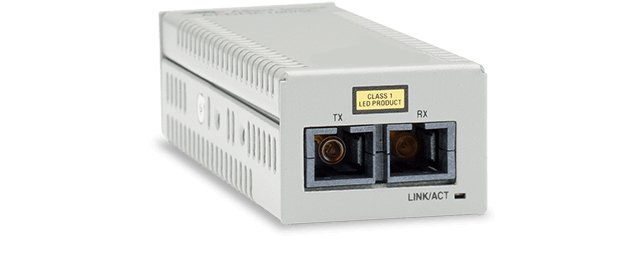

Fast Ethernet to Fiber Desktop Media Converter with USB power
This desktop media converter features 100TX to 100FX conversion with multi-mode SC fiber connector supporting a distance up to 2km. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.

Product Specifications

Manufacturer	Allied Telesis
Manufacturer Part Number	AT-DMC100/SC-90
GTIN / Barcode	0767035206646
Brand Name	Allied Telesis
Product Name	Allied Telesis AT-DMC100/SC-90 network media converter 100 Mbit/s 1310 nm Multi-mode Grey

Network
Mfr. Part Number	AT-DMC100/SC-90
GTIN / Barcode	0767035206646
Maximum data transfer rate	100 Mbit/s
Converter input interface	100Base-TX
Converter output interface	100Base-FX
Networking standards	IEEE 802.1Q
Ethernet interface type	Fast Ethernet
Data transfer rate	100 Mbit/s
Packet forwarding rate (10 Mbps)	14880 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (1 Gbps)	1488000 pps
VLAN support	Yes
Auto MDI/MDI-X	Yes
Duplex system	Full, Half
Performance
Maximum transfer distance	2000 m
Wavelength	1310 nm
Fiber mode structure	Multi-mode
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Tx power (min)	-22.5 dBmW
Tx power (max)	-14 dBmW
Rx power (min)	-32 dBmW
Rx power (max)	-34 dBmW
Features
Internal	No
LED indicators	Yes
Product colour	Grey
Ports & interfaces
Connectivity technology	Wired
Fiber optic connector	SC
Power
Power consumption (typical)	1.5 W
Weight & dimensions
Width	31.8 mm
Depth	91.4 mm
Height	21.6 mm
Weight	113 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m
Brand	Allied Telesis
Availability	In Stock
Price Currency	USD
Category	Networking & Communications
