Name: NETGEAR 10-Port Multi-Gigabit/10G Ethernet Smart Switch (MS510TXM) MS510TXM-100NAS
Brand: NETGEAR
SKU: MS510TXM-100NAS
Price: 1004.73 USD
Availability: InStock

Home /Networking & Communications /Network Switches /NETGEAR 10-Port Multi-Gigabit/10G Ethernet Smart Switch (MS510TXM)

Product Details

NETGEAR Smart Managed Pro Switches with Optional Remote/Cloud Management

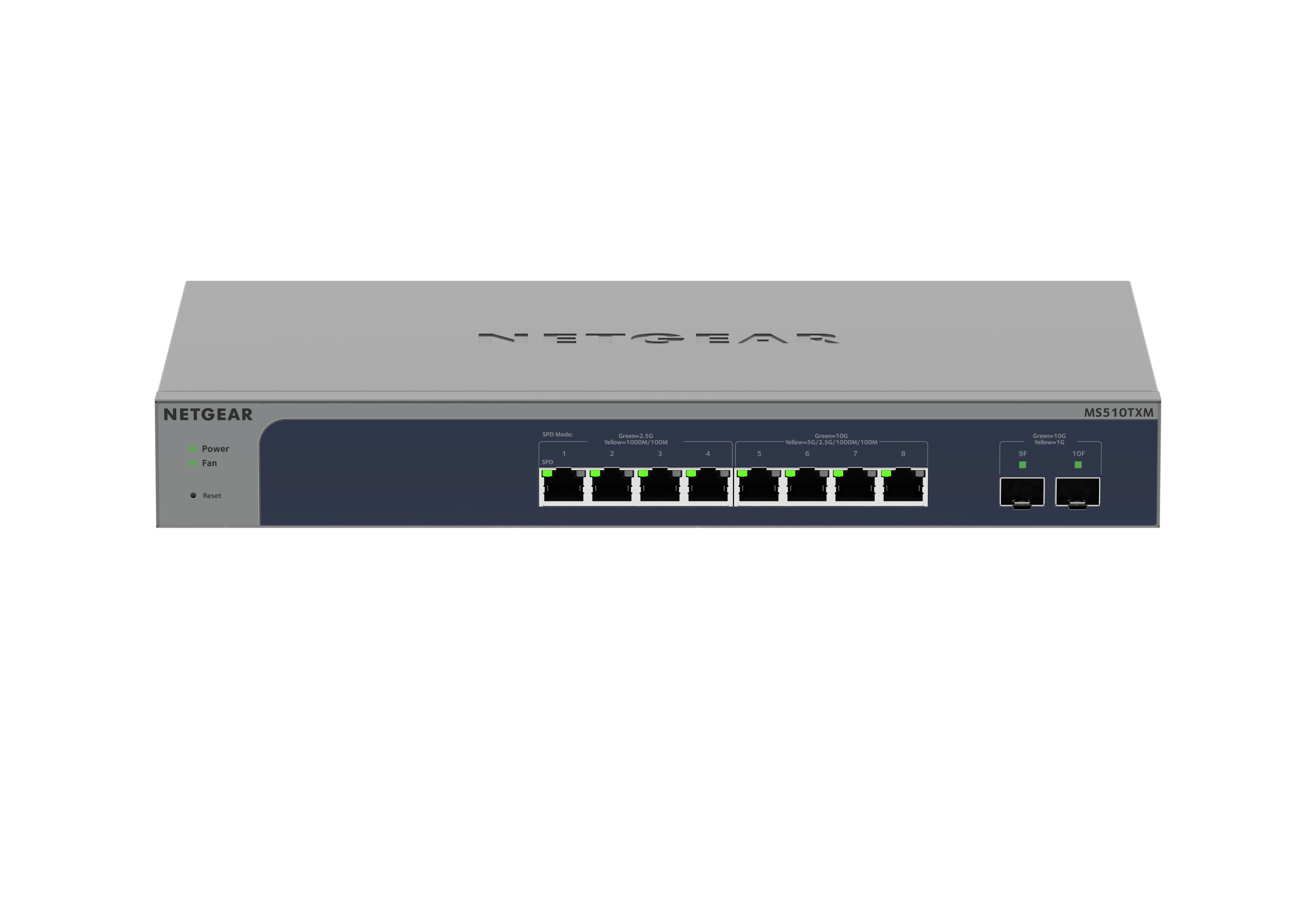

The NETGEAR® MS510TXM 8-Port Multi-Gigabit/10G Smart Managed Pro Switch offers 4 ports 1G/2.5G and 4 ports multi-gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. MS510TXM can be managed remotely by NETGEAR Insight and includes 1-year of Insight Premium or Pro subscription with purchase.

- Multi-speed Ethernet ports for flexible and auto-adaptive wired connectivity of multi-Gigabit devices.
- 2-port 10G SFP+ Fiber uplinks (1G/10GBASE-X fiber SFP+).
- Quiet desktop operation or rack mounting.
- Layer 3 static routing with 32 routes (IPv4 and IPv6).
- Easy-to-use Web browser-based management GUI.
- NETGEAR Insight Cloud management activation (1-Year Insight subscription is included).
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings.

Product Specifications

Manufacturer	NETGEAR
Manufacturer Part Number	MS510TXM-100NAS
GTIN / Barcode	0606449152357
Brand Name	NETGEAR
Product Name	NETGEAR 10-Port Multi-Gigabit/10G Ethernet Smart Switch (MS510TXM)

Management features
Mfr. Part Number	MS510TXM-100NAS
GTIN / Barcode	0606449152357
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
System event log	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
SFP+ module slots quantity	2
Network
Networking standards	IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
10G support	Yes
Port mirroring	Yes
Broadcast storm control	Yes
VLAN support	Yes
Number of VLANs	256
Data transmission
Switching capacity	140 Gbit/s
MAC address table	32000 entries
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	2 MB
Security
DHCP features	DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Password protection	Yes
Queue scheduling algorithms	WRR+SP
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Product colour	Grey
LED indicators	Activity, Fan fail, Link, Power, Speed
Number of fans	2 fan(s)
Performance
Built-in processor	Yes
Processor frequency	1000 MHz
Internal memory	256 MB
Flash memory	64 MB
Noise level	25 dB
Firmware upgradeable	Yes
Mean time between failures (MTBF)	1059519 h
Power
Power supply included	Yes
Power consumption (max)	47 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Heat dissipation	160.458 BTU/h
Weight & dimensions
Width	330 mm
Depth	206 mm
Height	43 mm
Weight	2.08 kg
Packaging content
Cables included	AC
Quick start guide	Yes
User guide	Yes
Manual	Yes
Packaging data
Rack rails	Yes
Certificates
Certification	CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI
Brand	NETGEAR
Availability	In Stock
Price Currency	USD
Category	Network Switches
